Designing & Manufacturing A Permanent Magnet Dipole Assembly
04/15/2020 Michael Brand

Quadrant designs and manufactures permanent magnet dipole assembly, there are many Interconnected  variables to be careful with, it is often time important to provide our customers the right magnetic assemblies that meet the requirement. Our experts summarized four (4) factors below to consider, and as with most magnetic assemblies, these factors need to be considered together and not just individually.

Gap Requirements

A permanent magnet dipole assembly produces a very uniform magnetic field in a defined gap between 2 magnets. But, the size of the gap is helps determine the strength of the magnetic field. A general rule is to keep the gap only to the size that you need so you can achieve the highest magnetic field and to maintain field uniformity. For example, if a medical researcher is running a sample through the magnetic field prior to viewing it under a microscope, then the gap should be slightly bigger than the largest sample.

Magnetic Field Requirements

Defining the magnetic field in the center of the gap goes hand-in-hand with gap requirements. For example, if a magnetic field requirement is 1 Tesla in the center of the gap this will help determine the magnetic materials and steel requirements, and any magnetic field focusing needed. But keep in mind that there is a close relationship between the size of the gap and the magnetic field requirement, so a permanent magnet dipole assembly may not be able to produce the required field if the gap is too large and the size requirements are too small.

Size Requirements

The overall size of the dipole assembly can have a direct impact on the size of the gap, the magnetic field in the gap, and the portability of the permanent magnet dipole assembly. Quadrant has made dipole assemblies as large as a dorm room refrigerator, and smaller than a cell phone. The size of the assembly will be determined by the size of the area where it will be used, the magnetic field needed in the gap, and the need to move it easily if necessary.

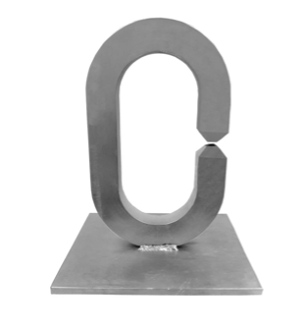

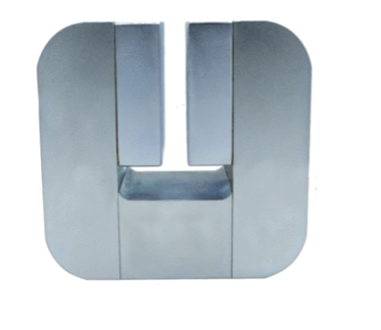

        Image 1: Small Dipole With Approximately Approximately 1 Tesla In The Gap        Image 2: larger permanent magnet dipole assembly with 2+ Tesla in the gap

Working Condition Requirements

In most cases permanent magnet dipole assemblies are used in ambient temperatures with no exposure to harsh chemicals or intense pressures. However, it is good to determine the location, or locations, of the dipole assembly so you can assess the environment and conditions. This is important because it could affect the magnetic materials being used, the coatings of the magnets and steel, shielding requirements, or surrounding instruments and tools that could be affected.

General Overview

• No Power Required

Unlike an electromagnet, permanent magnet dipole assemblies are always turned on and no electricity is needed to power them. This is truly a savings on electricity costs.  Electromagnets, like an MRI, can require large amounts of energy.

• Less Exposure to Magnetic Fields

The magnetic field in a permanent magnet dipole assembly is confined by or contained within the gap, so exposure to “stray magnetic fields” is far less likely than exposure to a strong electromagnetic field, like an MRI.

• Lower Initial Cost

The cost of permanent magnet dipole assemblies will be less expensive than the cost to manufacture an electromagnet. These will also be lower operating costs over time (see below).

• No Electronics or Moving Parts

Because permanent magnet dipole assemblies have no electronics or moving parts, there is no maintenance other than keeping them clean and protected from damage.

• Magnetic Field Limitations

A permanent magnet dipole assembly is limited in the magnetic field it is able to produce based upon the magnetic materials, gap size, and physics. While an electromagnet can easily be manufactured to produce a magnetic field of 3-5 Tesla in a large gap, a permanent magnet dipole assembly may not be able to accomplish this. However, new magnetic materials, assembly techniques and magnet configurations are always being developed and improved, so one day a permanent magnet dipole assembly may compete with an electromagnet dipole.

Different factors are being put into consideration when designing a permanent magnetic dipole assembly. Work with our magnetics consultants and engineers to determine if a permanent magnet dipole assembly can meet your requirements.
